5G Edge Computing Cabinet Solution

Solution Overview

The 5G Edge Computing Cabinet Solution addresses the infrastructure requirements of next-generation smart city and industrial IoT deployments. As 5G networks expand and edge computing moves closer to the data source, the physical infrastructure that houses 5G small cells, edge computing servers, and network equipment at outdoor locations becomes a critical determinant of system performance and reliability.

This solution provides a complete, engineered outdoor cabinet that integrates 5G small cell base stations, edge computing servers (MEC), power management systems, thermal control, and network equipment in a single weatherproof enclosure. The result is a deployable edge computing node that brings ultra-low latency processing to roadside, campus, and industrial locations.

The 5G edge computing cabinet is designed for rapid deployment at scale — standardized configurations enable consistent installation across hundreds of sites while maintaining the flexibility to accommodate different 5G equipment vendors and edge computing platforms. It is the physical foundation for smart city intelligence, industrial automation, and connected vehicle applications.

Core Value Propositions

Ultra-Low Latency Processing

Edge computing server co-located with 5G small cell enables sub-10ms application latency for real-time AI inference, video analytics, and autonomous vehicle support.

Integrated 5G Infrastructure

Single enclosure houses 5G BBU/RRU, edge server, power supply, and network equipment — reducing site footprint and installation complexity.

High-Density Power Management

Intelligent PDU with per-outlet monitoring and remote switching manages power to multiple high-power devices with total power up to 10kW per cabinet.

Advanced Thermal Control

Precision air conditioning or liquid cooling maintains server and 5G equipment within operating temperature range even in high-ambient-temperature outdoor locations.

Remote Management

DCIM-integrated cabinet management system provides real-time monitoring of power, temperature, and equipment status for remote O&M.

Carrier-Grade Reliability

N+1 redundant power supplies, UPS backup, and redundant cooling ensure 99.999% availability for carrier-grade 5G deployments.

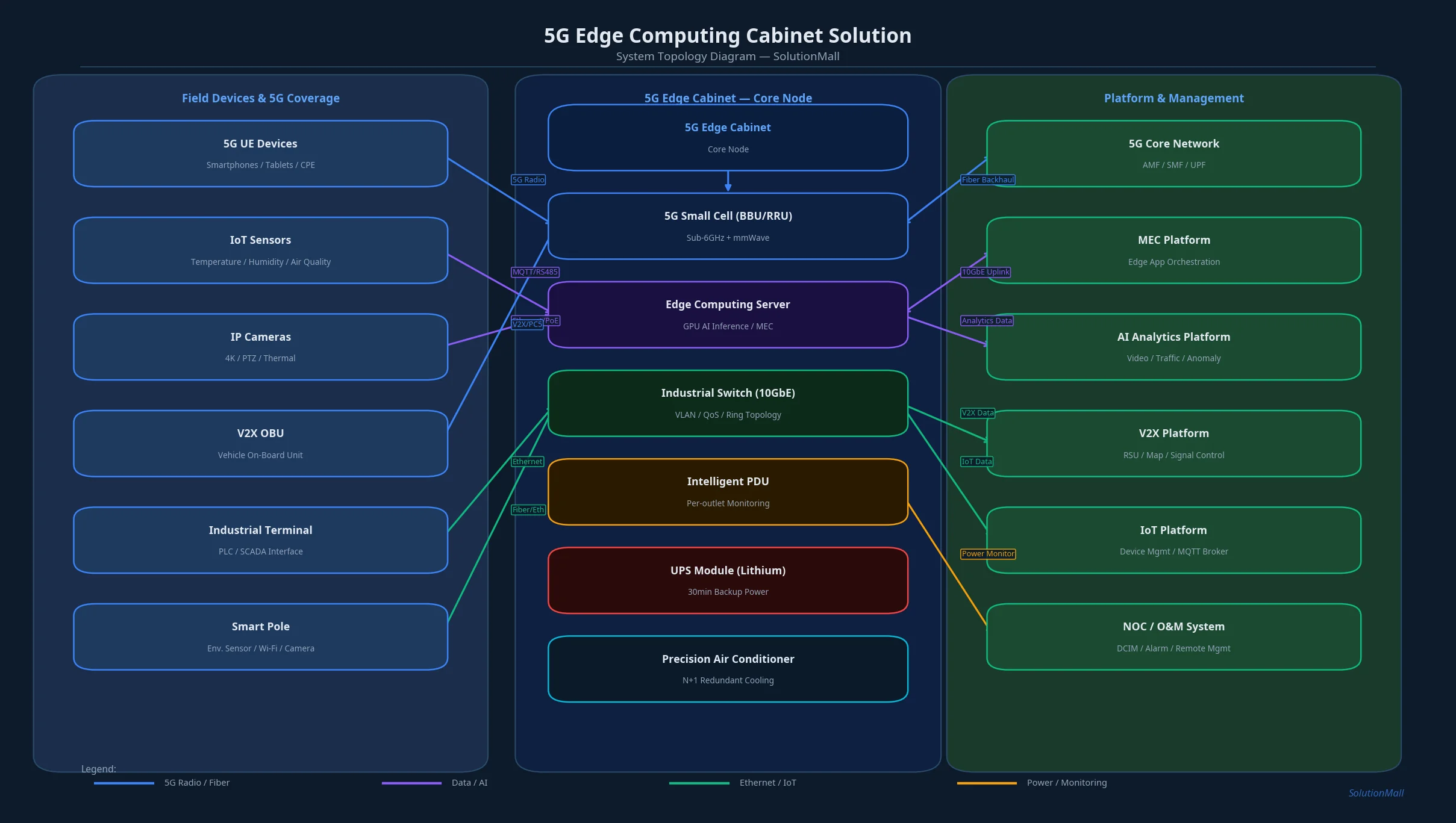

System Architecture Diagram

5G Edge Computing Cabinet Solution — System Topology Diagram by SolutionMall

Technical Specifications

Cabinet Type	Outdoor 5G edge computing cabinet
Protection Rating	IP55 / IP65
Material	2.0mm cold-rolled steel, powder-coated
Dimensions	600×600×2000mm to 800×800×2200mm
Rack Space	12U to 20U, 19-inch standard
Power Input	AC380V 3-phase, up to 10kW
Cooling	Precision air conditioner, N+1 redundant
UPS	Built-in UPS, 30min backup
5G Support	Sub-6GHz and mmWave small cell
Operating Temp	-40°C to +55°C (with cooling)

System Modules

5G Small Cell Module

Indoor/outdoor 5G BBU and RRU mounting provisions with RF cable management and antenna port connections for sub-6GHz and mmWave deployments.

Edge Computing Server

1U to 4U edge server with GPU acceleration for AI inference, video analytics, and real-time data processing at the network edge.

Intelligent PDU

Per-outlet power monitoring and remote switching PDU for individual device power management and consumption reporting.

UPS Module

Built-in UPS with lithium battery providing 30-minute backup power for graceful shutdown or short-term outage bridging.

Precision Air Conditioner

Dedicated cabinet air conditioner maintaining internal temperature at 20-25°C regardless of external ambient temperature.

Cabinet Management System

DCIM-integrated monitoring of power, temperature, humidity, door status, and equipment health with remote alerting.

System Workflow

5G Signal Processing

The 5G small cell BBU processes baseband signals from the RRU/antenna and connects to the 5G core network via fiber uplink. The small cell provides 5G coverage for the surrounding area.

Edge Data Ingestion

IoT devices, cameras, and sensors in the 5G coverage area transmit data to the edge computing server via the 5G network with ultra-low latency.

Edge AI Processing

The edge computing server runs AI inference models for real-time video analytics, object detection, traffic analysis, or industrial process monitoring — without sending data to the cloud.

Local Response & Control

Time-critical control commands (traffic signal adjustment, autonomous vehicle guidance, industrial safety response) are generated locally by the edge server and transmitted back to devices within milliseconds.

Cloud Synchronization

Non-time-critical data, model updates, and aggregated analytics are synchronized with the cloud platform via the fiber uplink for long-term storage and analysis.

Remote O&M

The cabinet management system monitors power consumption, temperature, equipment status, and 5G KPIs. Alerts are sent to the NOC for proactive maintenance.

Application Scenarios

▶ Smart City Roadside Intelligence

Deploy at intersections and road segments to provide 5G coverage, real-time video analytics, and V2X (vehicle-to-everything) communication support.

▶ Industrial IoT Edge Node

Provide ultra-low latency processing for industrial automation, quality inspection, and predictive maintenance applications in factory environments.

▶ Campus 5G Coverage

Deploy at campus buildings and outdoor areas to provide private 5G network coverage with edge computing for smart campus applications.

▶ Autonomous Vehicle Support

Serve as roadside edge computing nodes for V2X communication, HD map updates, and real-time traffic information for autonomous vehicles.

▶ Smart Port & Logistics

Provide 5G connectivity and edge computing for automated crane control, vehicle tracking, and cargo management in port and logistics environments.

▶ Emergency Response Network

Deploy rapidly deployable 5G edge computing nodes for temporary coverage and command-and-control support at emergency response sites.

Selection Guide

✓ Confirm 5G frequency band requirements (sub-6GHz vs. mmWave) before selecting cabinet size and RF cable routing provisions.

✓ Edge server GPU selection should be based on AI inference workload — vision AI requires GPU acceleration, while simple IoT analytics may use CPU-only servers.

✓ Total power consumption of 5G equipment plus edge server can exceed 5kW — verify power input capacity and UPS sizing accordingly.

✓ High-ambient-temperature locations (>35°C) require precision air conditioning — passive cooling is insufficient for 5G + edge computing deployments.

✓ For carrier-grade deployments, specify N+1 redundant power supplies and cooling units to meet 99.999% availability requirements.

✓ Plan fiber uplink capacity for both 5G fronthaul/backhaul and edge computing data synchronization — typically 10Gbps minimum.

Deployment & Implementation Notes

⚠ 5G antenna positioning and RF cable routing must be planned before cabinet installation — RF performance is sensitive to cable length and connector quality.

⚠ Edge computing servers require precise temperature management — verify air conditioner capacity against total server thermal design power (TDP).

⚠ Power infrastructure at the site must support the cabinet's peak power demand including UPS charging current.

⚠ 5G small cell commissioning requires coordination with the mobile network operator for frequency planning and network integration.

⚠ Cabinet management system must be integrated with the NOC monitoring platform before going live.

⚠ Establish a preventive maintenance schedule covering air conditioner filter cleaning, UPS battery testing, and firmware updates for all equipment.

Key Products Required

Outdoor 5G Edge Cabinet 5G Small Cell (BBU/RRU) Edge Computing Server Intelligent PDU UPS Module (Lithium) Precision Air Conditioner Industrial Switch (10GbE) Fiber Patch Module Cabinet Management System Grounding & Bonding Kit
