Smart Roadside Integrated Cabinet Solution

Integrated outdoor cabinet solution for smart city roadside deployments — combining traffic control, surveillance, IoT sensors, 5G small cells, and power distribution in a single weatherproof enclosure.

IP65 IK10 Anti-theft Thermostat 5G Ready
Browse Products Submit Requirement

Solution Overview

The Smart Roadside Integrated Cabinet Solution addresses one of the most critical challenges in smart city infrastructure: how to reliably deploy, power, and manage multiple front-end devices at roadside locations. Traditional approaches scatter equipment across poles and brackets without unified protection, leading to frequent failures caused by weather, lightning, and maintenance difficulties.

This solution consolidates cameras, millimeter-wave radar, traffic detectors, environmental sensors, IoT gateways, 5G small cells, and supplemental lighting into a single weatherproof cabinet. By centralizing power distribution, network switching, surge protection, and cable management within one engineered enclosure, project teams achieve standardized deployment, reduced installation time, and dramatically improved long-term reliability.

The cabinet serves as the core node of the roadside system — connecting the field device layer to the traffic management platform, video management server, and cloud infrastructure. It is the foundation upon which smart city roadside intelligence is built.

Core Value Propositions

Unified Protection
Eliminates weather, corrosion, and lightning risks for all roadside devices through IP65/IK10 enclosure with integrated SPD on power, network, and signal lines.
Standardized Deployment
Modular internal layout enables consistent, repeatable installation across hundreds of roadside nodes, reducing per-site engineering time by up to 60%.
Integrated Connectivity
Single uplink fiber or 5G connection carries all device data — video, radar, sensor, and control — to the traffic management platform.
Remote O&M Ready
Door sensor, temperature/humidity monitoring, and edge computing unit enable remote diagnostics and predictive maintenance without on-site visits.
Future-Proof Architecture
20% spare space and 30% power reserve built into standard configurations to accommodate technology upgrades and device additions.
Compliance & Safety
Meets IEC 62208, GB/T 17045, and local road infrastructure standards for outdoor electrical enclosures in public spaces.

System Architecture Diagram

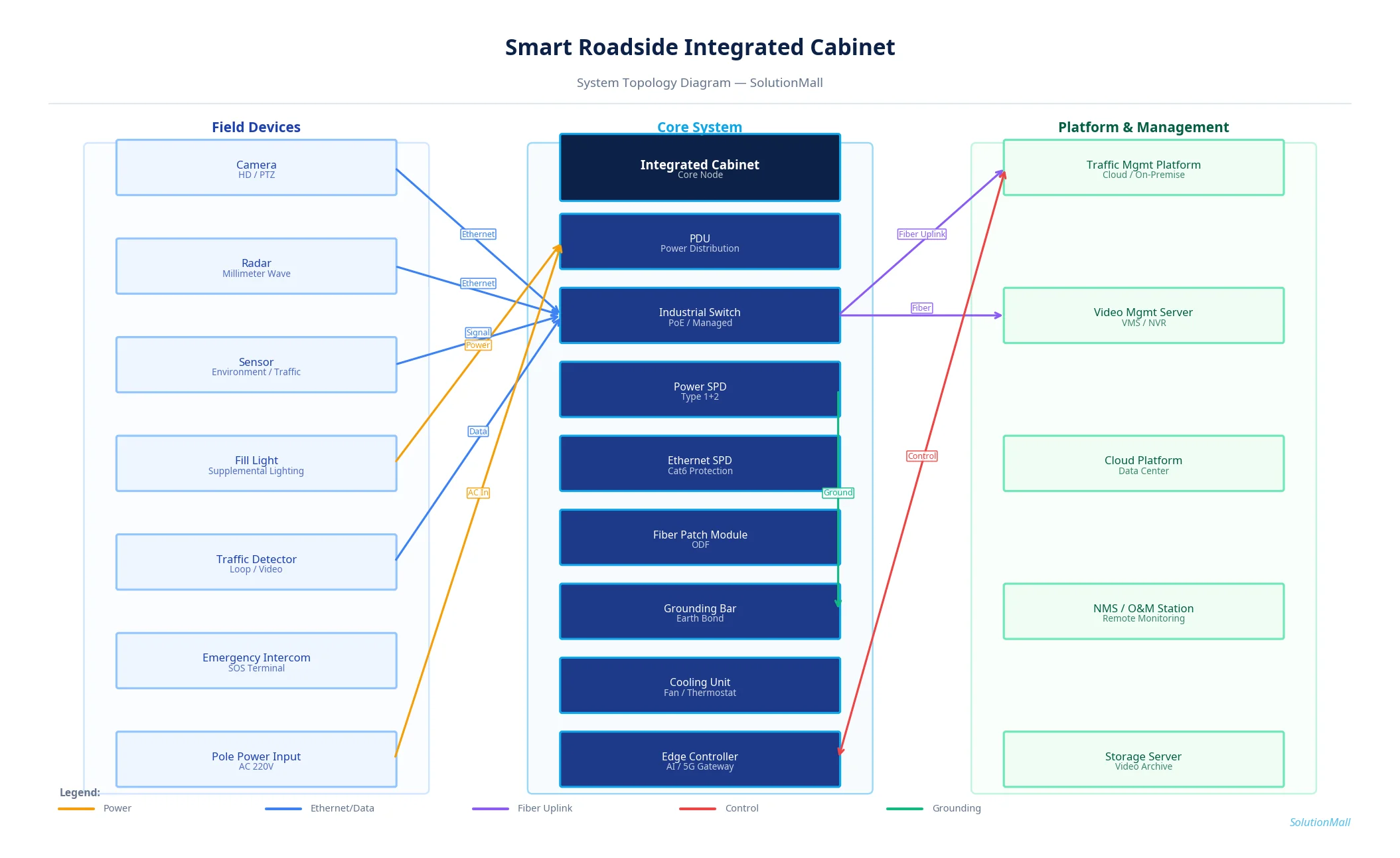

Smart Roadside Integrated Cabinet Solution System Topology Diagram

Smart Roadside Integrated Cabinet Solution — System Topology Diagram by SolutionMall

Technical Specifications

Cabinet TypeMulti-compartment outdoor integrated cabinet
Protection RatingIP65 / IK10
Material1.5mm cold-rolled steel, powder-coated or stainless steel
Dimensions800×W800×D600mm (standard), custom available
CoolingThermostat + fan + heat exchanger, optional air conditioner
Power InputAC220V/380V, DC48V optional
MountingPole-mounted / ground-mounted / foundation box
Cable EntryBottom or side, with waterproof cable glands
LockElectronic lock with tamper alarm and access log
Operating Temp-40°C to +70°C

System Modules

Traffic Control Module
Signal controller, detector interface, timing unit, and traffic management interface for intersection control.
Surveillance Module
Camera power supply, PoE switch, video storage, and uplink management for HD/PTZ cameras.
IoT / 5G Module
Edge computing unit, 5G small cell, sensor hub, and protocol gateway for smart city data aggregation.
Power Distribution
Main breaker, surge protection device (SPD), UPS module, and metering for reliable multi-device power supply.
Environmental Control
Temperature/humidity sensor, thermostat-controlled fan, heater, and optional heat exchanger for thermal management.
Security & Monitoring
Electronic lock, tamper alarm, door sensor, access log, and optional cabinet monitoring module for remote O&M.

System Workflow

1

Power Input & Distribution

Grid power or pole-mounted supply enters the cabinet through the main breaker and surge protection device (SPD). The PDU distributes power to cameras, radar, IoT sensors, switches, and edge computing units with individual circuit protection.

2

Field Device Data Ingestion

Cameras, radar, traffic detectors, and environmental sensors connect to the industrial PoE switch via Ethernet or to the edge controller via serial/I/O interfaces. All front-end data is aggregated within the cabinet.

3

Edge Processing

The edge computing unit performs local video analytics, radar data fusion, and IoT protocol conversion, reducing uplink bandwidth requirements and enabling real-time local responses.

4

Fiber / 5G Uplink

Aggregated data is transmitted to the traffic management platform, VMS, and cloud infrastructure via the fiber patch module or 5G gateway. Uplink capacity supports 4K video streams from multiple cameras simultaneously.

5

Platform Control & Feedback

The traffic management platform sends control commands — supplemental light scheduling, device restart, edge policy updates — back through the network to the cabinet's edge controller and connected devices.

6

Environmental & Security Monitoring

Cabinet sensors continuously monitor internal temperature, humidity, and door status. Alerts are sent to the O&M platform when thresholds are exceeded, enabling proactive maintenance.

Application Scenarios

▶ Urban Road Video Surveillance
Deploy at intersections and road segments to power and connect HD cameras, PTZ cameras, and supplemental lighting for 24/7 urban monitoring.
▶ Smart Traffic Roadside Sensing
Integrate millimeter-wave radar, vehicle detectors, and pedestrian sensors for real-time traffic flow analysis and adaptive signal control.
▶ Highway Monitoring Stations
Provide weatherproof, lightning-protected enclosures for highway cameras, weather sensors, and emergency intercom systems at remote locations.
▶ Smart Pole Device Integration
Serve as the central hub for multi-function smart poles combining 5G small cells, environmental sensors, cameras, and public Wi-Fi in a single cabinet.
▶ Campus & Industrial Road Monitoring
Standardized deployment across campus roads and industrial park perimeters for unified security and traffic management.
▶ Bridge & Tunnel Sensing Nodes
Provide robust outdoor enclosures for structural monitoring sensors, cameras, and communication equipment at bridges and tunnel entrances.
▶ Urban Environmental Monitoring
Host air quality sensors, noise monitors, and weather stations alongside traffic equipment for comprehensive urban environment data collection.

Selection Guide

✓ Assess total device count and power consumption before selecting cabinet size — always add 20% space and 30% power reserve for future expansion.
✓ In high-lightning areas, specify Type 1+2 combined SPD on power lines and Cat6-rated SPD on all Ethernet ports.
✓ For coastal, high-humidity, or salt-spray environments, specify 316L stainless steel or high-grade anti-corrosion powder coating.
✓ If edge computing or AI analytics units are included, calculate total heat dissipation and specify heat exchanger or air conditioner accordingly.
✓ 5G-ready deployments require additional RF cable penetration planning and antenna mounting provisions on the cabinet exterior.
✓ For projects requiring remote O&M, specify cabinet monitoring module with temperature, humidity, door sensor, and power status reporting.

Deployment & Implementation Notes

⚠ Foundation base and cabinet mounting method must match road-side civil engineering conditions — verify load-bearing capacity before installation.
⚠ Plan cable entry direction before installation to avoid cross-routing; bottom entry is preferred for outdoor roadside cabinets.
⚠ Strictly separate power wiring (strong current) from signal and network wiring (weak current) within the cabinet.
⚠ In lightning-prone areas, verify grounding path continuity and ensure ground resistance meets local standards (typically ≤4Ω).
⚠ Complete power-on testing, link testing, platform connectivity testing, and weatherproofing inspection before project handover.
⚠ Establish internal circuit labeling, port tagging, and maintenance documentation for long-term O&M efficiency.
