Outdoor Lighting Distribution Box Solution

Solution Overview

The Outdoor Lighting Distribution Box Solution addresses the operational reality that lighting system reliability depends far more on the quality of the distribution and control node than on the luminaires themselves. Lighting failures, unexpected outages, and maintenance difficulties almost always originate at the distribution box — inadequate protection, poor circuit organization, or missing control functionality.

This solution provides a complete, standardized lighting distribution box that integrates multi-circuit breakers, contactors, leakage protection, surge protection devices, timer/astronomical clock controllers, and smart lighting interfaces within a weatherproof outdoor enclosure. The result is a lighting infrastructure that is reliable, energy-efficient, and ready for intelligent control upgrades.

From municipal road lighting to campus landscape illumination, this solution supports both traditional on/off control and advanced smart lighting systems with dimming, fault reporting, and energy management capabilities. It is designed to serve as the long-term control node for outdoor lighting infrastructure.

Core Value Propositions

Multi-Circuit Protection

Individual circuit breakers and leakage protection for each lighting zone enable rapid fault isolation without affecting other circuits.

Flexible Control Modes

Supports manual, timer, astronomical clock, light sensor, and remote platform control — adaptable to any lighting management requirement.

Energy Optimization

Astronomical clock and smart controller enable precise on/off scheduling aligned with actual sunrise/sunset times, reducing energy waste.

Lightning & Surge Protection

Type 1+2 SPD on power input and grounding system protect all electronics and connected luminaires from lightning damage.

Smart Lighting Ready

Pre-wired interfaces for DALI, 0-10V, or RS485 smart lighting controllers enable future upgrade to intelligent dimming and fault monitoring.

Weatherproof Durability

IP65 enclosure with stainless steel hardware and UV-resistant coating ensures 15+ year service life in outdoor environments.

System Architecture Diagram

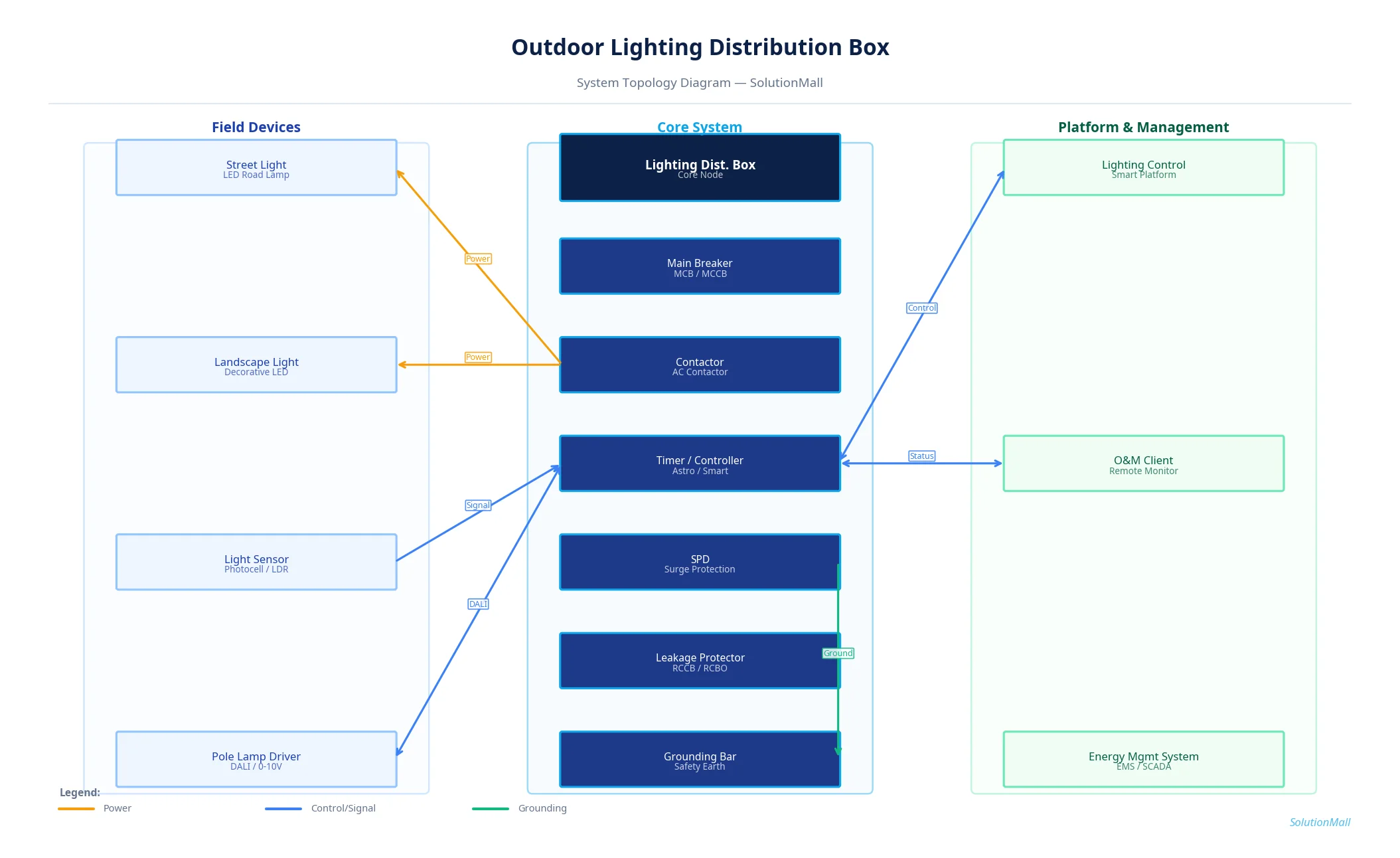

Outdoor Lighting Distribution Box Solution — System Topology Diagram by SolutionMall

Technical Specifications

Box Type	Outdoor lighting distribution box
Protection Rating	IP65 / IK10
Material	2.0mm galvanized steel or stainless steel
Dimensions	600×800×250mm to 1200×1000×400mm
Circuit Capacity	4 to 24 output circuits
Total Load	Up to 100kW per box
Power Input	3-phase 380V or single-phase 220V
Control	Timer / Astronomical clock / Smart controller / Remote
SPD	Type 1+2 on power input
Operating Temp	-40°C to +60°C

System Modules

Main Breaker & Metering

Main circuit breaker with energy meter for total power consumption monitoring and billing, with surge protection on the incoming supply.

Leakage Protection Module

RCCB (residual current circuit breaker) on each output circuit provides personnel safety protection and fault current detection.

Contactor Control Module

AC contactors controlled by timer or smart controller for each lighting zone, enabling independent on/off scheduling per circuit.

Timer / Astronomical Clock

Programmable timer or GPS-synchronized astronomical clock for automatic lighting schedule based on calendar, time, and location.

Smart Lighting Controller

Optional DALI or RS485 smart lighting controller for dimming, fault detection, energy reporting, and remote management platform connectivity.

SPD & Grounding

Type 1+2 surge protection device on power input with dedicated grounding bar for lightning protection and personnel safety.

System Workflow

Power Entry & Main Protection

Three-phase or single-phase grid power enters through the main breaker, energy meter, and Type 1+2 SPD. The main breaker provides overload and short-circuit protection for the entire distribution box.

Circuit Distribution

Power is distributed to individual circuit breakers and contactors for each lighting zone. Each circuit has independent overcurrent protection and leakage protection for safety.

Control Signal Processing

The timer or astronomical clock generates on/off commands based on programmed schedules. Light sensors provide ambient light feedback for automatic dusk-to-dawn control.

Contactor Operation

Control signals activate or deactivate contactors for each lighting circuit, switching the luminaires on or off. Contactors are rated for the full circuit load with appropriate safety margins.

Smart Control Integration

When smart lighting controllers are installed, they communicate with individual luminaire controllers via DALI or RS485, enabling dimming, fault detection, and energy reporting per luminaire.

Platform Reporting

Energy consumption data, circuit status, and fault alerts are transmitted to the lighting management platform or energy management system via the smart controller's communication interface.

Application Scenarios

▶ Municipal Road Lighting

Control multiple road lighting circuits from a single distribution box, with astronomical clock scheduling and remote monitoring for city-wide lighting management.

▶ Campus Road & Pathway Lighting

Manage campus lighting zones independently, with different schedules for main roads, pedestrian paths, parking areas, and building perimeters.

▶ Parking Structure Lighting

Control parking lot and garage lighting with occupancy-based dimming and scheduled full-brightness periods for energy efficiency.

▶ Landscape & Decorative Lighting

Manage multiple landscape lighting circuits with different schedules for feature lighting, pathway lighting, and accent illumination.

▶ Industrial Facility Lighting

Control factory yard, warehouse exterior, and perimeter lighting with industrial-grade protection against harsh environmental conditions.

▶ Smart Street Lighting System

Serve as the field control node for smart street lighting networks, connecting to city-wide lighting management platforms via cellular or fiber communication.

Selection Guide

✓ Determine total load (kW), number of circuits, and control mode requirements before selecting box configuration.

✓ For installations in high-lightning areas, specify Type 1+2 combined SPD — Type 2 alone is insufficient for direct lightning strike protection.

✓ Long-term unattended installations should include remote status monitoring and alarm output for fault notification.

✓ Landscape lighting projects with many independent circuits benefit from modular contactor groups for flexible zone control.

✓ Coastal and high-humidity environments require stainless steel enclosures with stainless hardware and marine-grade sealing.

✓ Smart lighting upgrades should be planned at initial installation — pre-wire for smart controller and communication interfaces even if not immediately activated.

Deployment & Implementation Notes

⚠ Circuit numbers, pole numbers, and distribution circuit identifiers must be consistent across all documentation and physical labels.

⚠ Distribution box location must balance installation convenience, safety from vehicle impact, and maintenance accessibility.

⚠ Bottom cable entry with waterproof glands is mandatory — top entry creates water ingress risk in outdoor installations.

⚠ Grounding installation must be complete and tested — do not treat grounding as a formality in outdoor electrical installations.

⚠ Complete insulation resistance testing, leakage protection testing, circuit continuity testing, and control logic verification before energization.

⚠ Establish a lighting circuit register with pole numbers, circuit assignments, and scheduled maintenance intervals for long-term O&M.
