Outdoor Waterproof Equipment Enclosure Solution

Solution Overview

The Outdoor Waterproof Equipment Enclosure Solution addresses the most underestimated challenge in IoT and smart city deployments: the physical protection of edge devices. While much engineering effort goes into selecting sensors, gateways, and communication modules, the enclosure that protects these devices in outdoor environments often receives insufficient attention — with costly consequences.

Water ingress, UV degradation, condensation, cable corrosion, and mechanical damage from vibration or vandalism are the leading causes of edge device failures in outdoor deployments. This solution provides standardized, properly specified enclosures with appropriate IP ratings, UV-resistant materials, waterproof cable glands, anti-condensation provisions, and secure mounting systems for every type of outdoor edge device.

The solution is particularly valuable for large-scale IoT deployments where hundreds or thousands of edge nodes must be protected consistently. Standardized enclosure specifications enable bulk procurement, consistent installation quality, and simplified maintenance procedures across the entire deployment.

Core Value Propositions

IP66 Weather Protection

Certified IP66 or higher enclosures prevent water ingress from heavy rain, high-pressure washing, and condensation — the primary causes of outdoor device failure.

UV & Corrosion Resistance

UV-stabilized polycarbonate or powder-coated steel enclosures maintain structural integrity and sealing performance over 15+ years of outdoor exposure.

Anti-Condensation Design

Pressure equalization valves and optional desiccant modules prevent internal condensation that corrodes connectors and damages electronics.

Secure Cable Entry

Waterproof cable glands with compression sealing maintain IP rating at all cable entry points while providing strain relief for connected cables.

Flexible Mounting Options

Pole clamps, wall brackets, and DIN rail mounting accessories accommodate installation on any outdoor structure.

Compact & Lightweight

Optimized enclosure sizes minimize visual impact and installation complexity while providing adequate space for target devices.

System Architecture Diagram

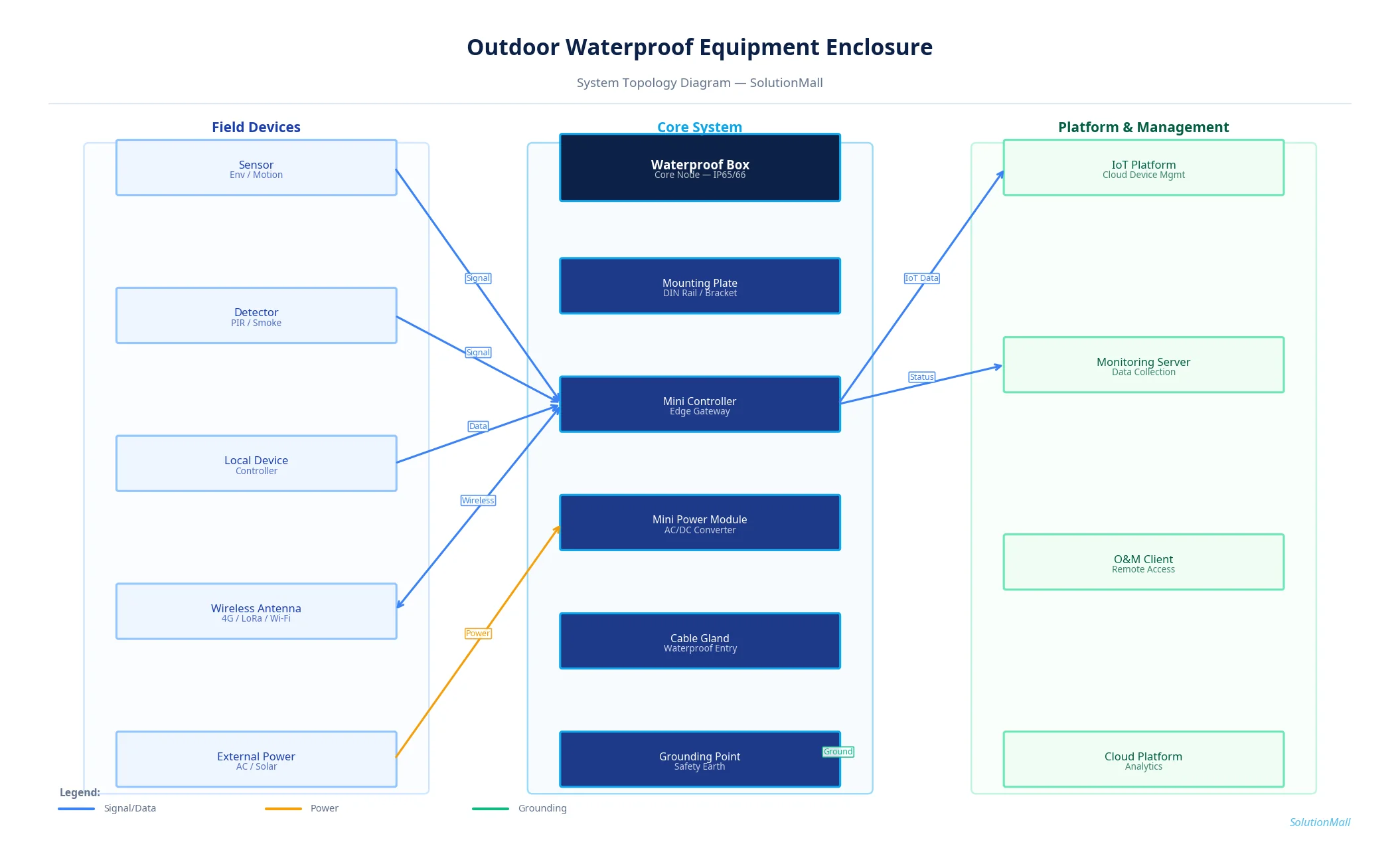

Outdoor Waterproof Equipment Enclosure Solution — System Topology Diagram by SolutionMall

Technical Specifications

Box Type	Outdoor waterproof equipment enclosure
Protection Rating	IP66 / IP67 / NEMA 4X
Material	Polycarbonate (PC), GRP, or powder-coated steel
Dimensions	150×100×80mm to 500×400×200mm
Cable Glands	M16 to M40, IP68 rated
Mounting	Pole clamp / wall bracket / DIN rail
UV Resistance	UV stabilized, rated for 15+ years outdoor
Temperature	-40°C to +80°C
Ventilation	Optional pressure equalization valve
Lock	Stainless steel latch or padlock provision

System Modules

Mounting Plate

Galvanized steel or aluminum mounting plate with DIN rail for organizing internal components and providing mechanical support.

Cable Gland Kit

IP68-rated cable glands in multiple sizes for waterproof cable entry, with blanking plugs for unused ports.

Mini Power Module

Small DIN rail power supply (5V/12V/24VDC) for powering internal devices from AC or DC input.

Waterproof Connector

IP67 or IP68 rated connectors for external sensor and device connections without compromising enclosure sealing.

Grounding Kit

Internal grounding bar and external grounding lug for electrical safety and surge protection.

Anti-Condensation Accessory

Pressure equalization valve or desiccant cartridge to prevent internal condensation in high-humidity or temperature-cycling environments.

System Workflow

Device Installation

Edge device (sensor, gateway, controller) is mounted on the internal mounting plate using DIN rail clips or direct fasteners. Cable routing within the enclosure is organized to avoid interference with the door seal.

Cable Entry & Sealing

External cables (power, network, sensor) are routed through IP68 waterproof cable glands. Gland compression nuts are tightened to the specified torque to maintain IP rating. Unused ports are sealed with blanking plugs.

Internal Wiring

Power and signal connections are made between the cable glands and the internal device. Connections are secured with appropriate terminals or connectors to prevent loosening from vibration.

Grounding Connection

The enclosure grounding lug is connected to the site grounding system. Internal device grounding is connected to the internal grounding bar.

Sealing & Closure

The door gasket is inspected for damage before closing. The enclosure is closed and latched securely. IP rating integrity is verified by checking gasket compression.

Device Communication

The installed device communicates with the management platform via wireless (4G/5G/LoRa/NB-IoT) or wired (Ethernet/fiber) connection through the sealed cable glands.

Application Scenarios

▶ Environmental Monitoring Node

Protect air quality sensors, weather stations, and noise monitors at roadside and outdoor locations from weather and vandalism.

▶ Roadside Data Collection

House traffic counters, parking sensors, and road condition monitors at pole-mounted locations with compact weatherproof enclosures.

▶ Outdoor IoT Terminal

Provide standardized protection for IoT gateways, LoRa concentrators, and NB-IoT base stations at distributed outdoor locations.

▶ Edge Sensor Access Point

Protect small controllers and sensor aggregation units at outdoor process monitoring points in water treatment, agriculture, and environmental applications.

▶ Small Communication Relay

House wireless repeaters, signal boosters, and small communication devices at outdoor locations requiring weatherproof protection.

▶ Parking & Traffic Sensing

Protect parking occupancy sensors, vehicle detection units, and traffic counting devices at outdoor locations.

Selection Guide

✓ Select enclosure size based on the largest internal component plus 30% space for wiring and future additions.

✓ For locations with direct sunlight exposure, specify UV-stabilized polycarbonate or UV-resistant powder coating.

✓ High-humidity and coastal locations require IP66 minimum — IP65 is insufficient for sustained water exposure.

✓ Frequently maintained nodes should have hinged doors with easy-open latches — avoid enclosures that require tools to open for routine access.

✓ Pole-mounted enclosures require matching pole clamps rated for the enclosure weight plus wind load.

✓ If internal devices generate heat, calculate thermal dissipation and specify ventilated enclosures or small heat exchangers accordingly.

Deployment & Implementation Notes

⚠ Cable entry gland position and cable bending direction must be planned before installation to ensure proper sealing.

⚠ Cable gland size must match cable outer diameter — oversized glands cannot achieve IP rating regardless of tightening torque.

⚠ Enclosure mounting angle and position should avoid locations where water accumulates or flows directly onto the enclosure.

⚠ Grounding must not be omitted for metal enclosures with external power supply — it is both a safety and surge protection requirement.

⚠ During maintenance, inspect door gasket condition, latch tightness, and cable gland sealing — replace worn gaskets immediately.

⚠ In high temperature-cycling environments, check for condensation inside the enclosure and add pressure equalization valve if needed.
